Solar inverter clipping occurs when the available DC power from a PV array could produce more AC power than the inverter is able to deliver at that moment. The inverter limits output at its applicable AC ceiling.
What Does Inverter Clipping Look Like?
For inverter options and capacity limits, read our hybrid solar inverter guide. To match load demand with inverter rating, see our inverter size calculator guide.
On a monitoring graph, clipping can appear as a flattened production peak during strong irradiance instead of a rounded curve. A flat peak alone is not proof; export limits, grid voltage and monitoring behavior can also affect the graph.

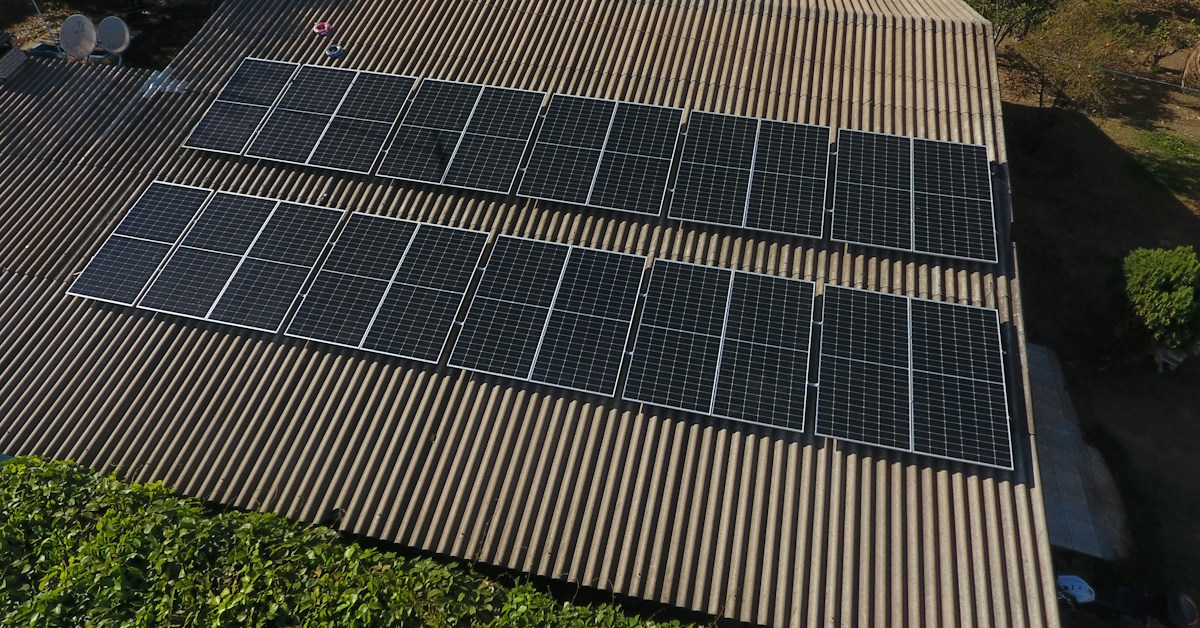

Why Designers Oversize the DC Array
PV modules do not operate at nameplate power throughout every day. Temperature, irradiance, orientation and losses vary. Some inverter manufacturers therefore permit DC array capacity above the inverter’s AC rating within specified limits.
Is Clipping Always Bad?
No. A small amount can be an intentional trade-off if additional morning, afternoon or lower-irradiance generation outweighs energy clipped during occasional peaks. Excessive clipping can indicate that the design should be reviewed.
How to Estimate Clipping Losses
Use hourly or sub-hourly energy modelling with local irradiance, module orientation, temperature behavior and inverter specifications. A generic percentage cannot accurately describe every system.
Check These Limits Before DC Oversizing
- Maximum recommended PV input power.
- Maximum DC voltage.
- MPPT voltage range.
- Maximum MPPT input current.
- Short-circuit current limit.
- String count and MPPT configuration.
Clipping vs Curtailment
Clipping from the inverter’s conversion/output ceiling is different from output being restricted by an export-control setting, grid requirement or external command. Diagnose the cause before changing array size.
FAQs
Can clipping damage an inverter?
A correctly designed system operating within manufacturer limits should be assessed according to the inverter’s documented behavior. Exceeding input voltage or current limits is a separate safety and warranty concern.
Can I put 7kW of panels on a 5kW inverter?
Only if the exact inverter documentation permits the proposed configuration and all string voltage/current limits are satisfied.
Does clipping happen every sunny day?
Not necessarily. It depends on array size, orientation, weather, temperature and inverter operating conditions.
How Much Clipping Is Acceptable?
There is no universal percentage that is correct for every project. A system can lose a small amount of energy at peak times while gaining more energy during mornings, afternoons and lower-irradiance periods. Whether that trade-off is worthwhile depends on module prices, inverter limits, electricity value, export rules and the local solar resource.
Clipping and Pakistan’s Summer Conditions
High irradiance does not always mean modules operate at their nameplate wattage because cell temperature rises during hot weather. That thermal effect can reduce DC power, which may change how often clipping occurs. This is one reason annual modelling is more useful than assuming the array will deliver its rated DC capacity throughout every sunny day.
How to Diagnose a Flat Production Curve
Start by checking inverter monitoring data, export-control settings, grid voltage events and system alarms. A flat curve around the inverter’s rated AC output is consistent with clipping, but similar-looking limits can be caused by curtailment or configuration settings. Diagnose the operating condition before adding or removing panels.
DC Oversizing and Warranty Conditions
Never treat a commonly discussed DC/AC ratio as permission to exceed the manufacturer’s input specifications. Maximum PV power, voltage and current limits can differ between inverter models that share the same AC rating. Always use the exact model manual or datasheet and confirm any warranty conditions related to PV oversizing.
When a Larger Inverter May Make Sense
If simulations show substantial annual clipping, future expansion is planned, or the current inverter is consistently limiting useful generation, a different inverter size may be worth evaluating. However, a larger inverter can also cost more and operate differently at low power. The choice should be based on annual energy and economics rather than peak watts alone.
Clipping Review Checklist
- Confirm the exact inverter AC rating.
- Check maximum PV input power and MPPT limits.
- Review monitoring data during clear days.
- Separate clipping from export limiting and grid curtailment.
- Estimate annual clipped energy rather than one-day losses.
- Compare the cost of extra panels with expected additional yield.
Clipping vs an Undersized Inverter
Seeing clipping does not automatically prove that the inverter was incorrectly sized. Many systems are intentionally designed with a DC array larger than the AC inverter because this can improve energy harvest outside peak hours. The key question is how much annual energy is clipped and whether a larger inverter would create enough extra value to justify its additional cost.
Monitoring After Installation
After commissioning, review clear-day production curves across different seasons. If the system repeatedly reaches a flat ceiling for long periods, compare monitoring data with the original design model. Also check whether export limitation, high grid voltage or firmware settings are restricting output. Good diagnosis prevents unnecessary equipment replacement.
Conclusion: Inverter clipping is a design trade-off, not automatically a fault. Use model-specific limits, monitoring data and annual energy modelling before changing DC array size.
